How to use the Custom Icon Class

As you have already learned how you can add hotspots and use them properly.

In this WP VR lesson, you will learn how you can use the custom icon class to add the icon of your own choice.

Using Custom Hotspot Icons Of Your Own Choice #

You may not wish to use Fontawesome icons, rather, let’s say you wish to add an icon of your own choice.

In that case, you need to use a certain code snippet.

Follow the steps below to see how it works.

1. Choose an icon of your choice on your website.

Let’s say I want to use the following icon:

icon

2. Then use the icon URL to prepare the following code snippet:

.custom-icon {
        height: 26px;
        width: 26px;
        background:
        url(" your image URL ") no-repeat center center / auto;
        border-radius: 12px;
        }

Here the “.custom-icon” is the class name. You can assign the height and width of your choice and use the icon URL in place of the background URL. And set a border radius.

**Please note that if you use a large image, it will not be resized to an icon size. So use an image that is already in the right size for an icon.

Here’s how I have prepared the code:

Humming icon

**You may choose to use height, width, and radius of your own choice, but we recommend you to use the values used in this code snippet.

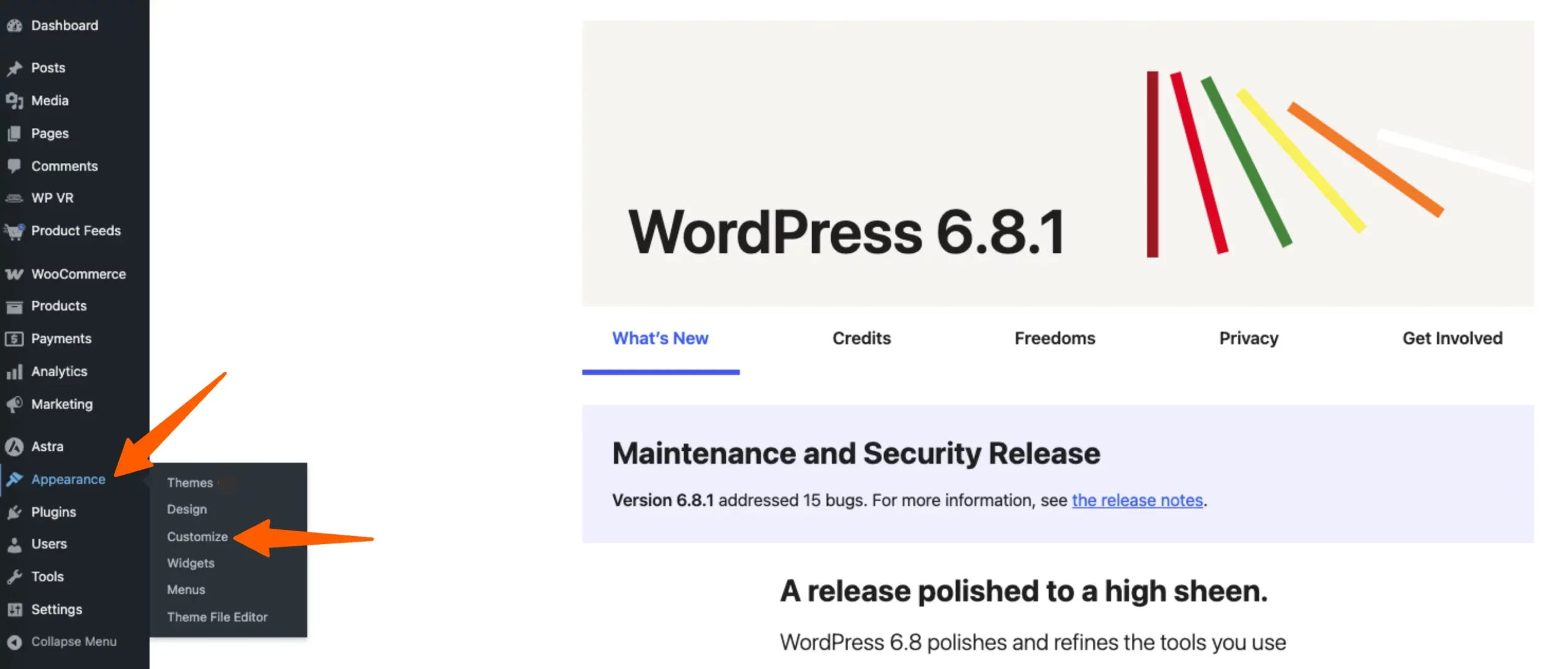

3. Go to Dashboard > Appearance > Customize.

Appearance and customize

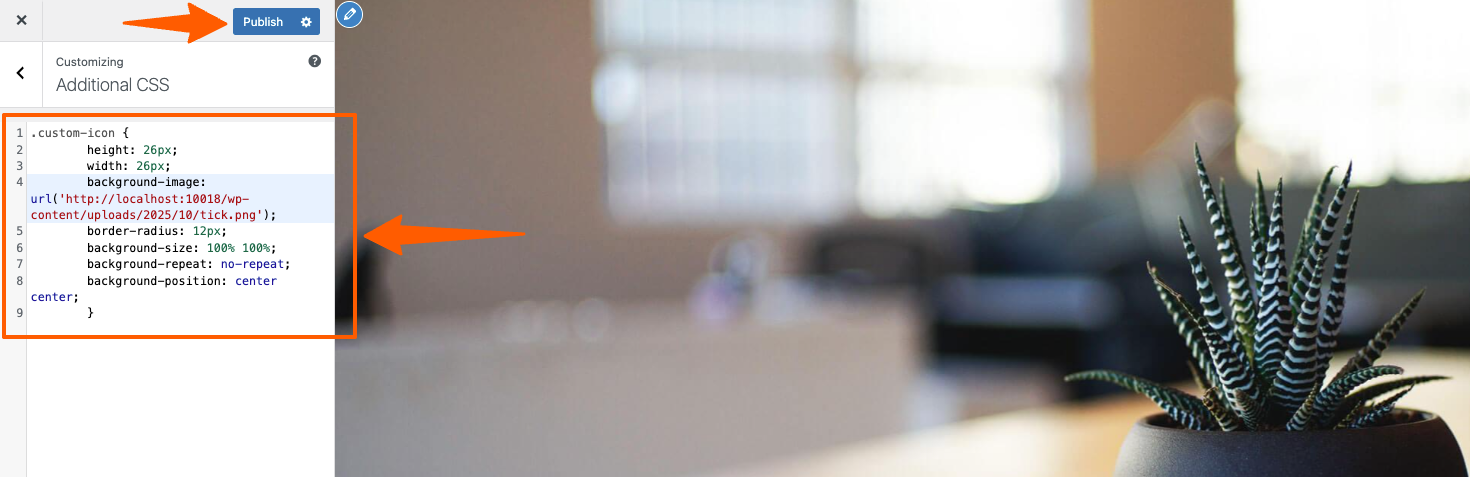

Here go to the Additional CSS section and paste the code snippet you just prepared.

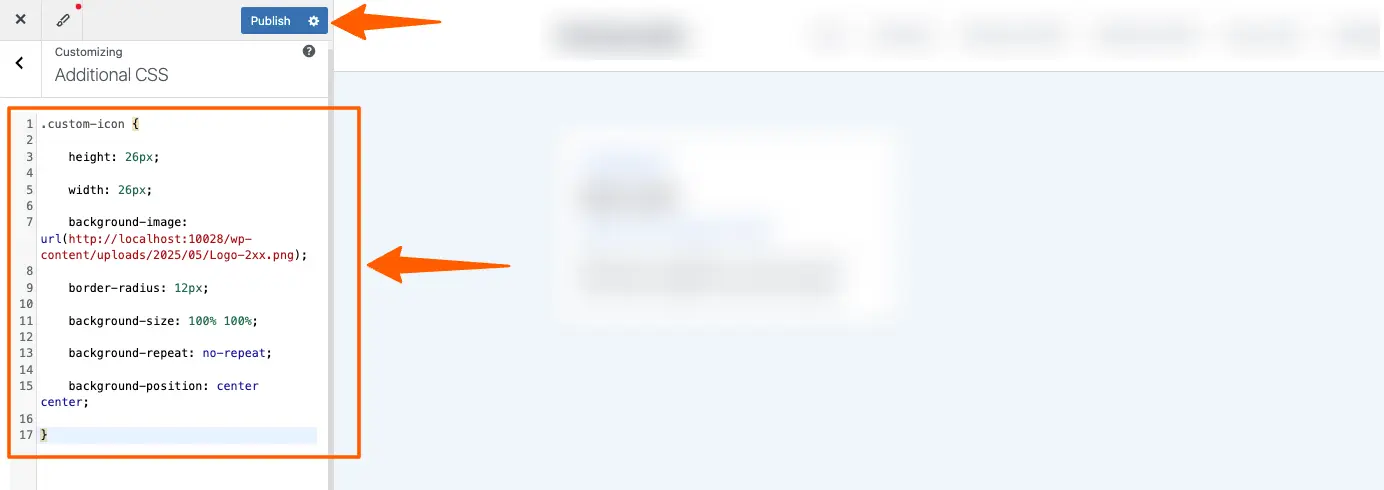

Paste code in Additional CSS

Then Publish/Save it.

4. Next, go to the Tour you created and go to the hotspot settings of the hotspot for which you want to use this icon.

Here, on the bottom-left side, you will find an empty field for Hotspot Custom Icon Class.

Hotspot icon class

5. Input the name of the class, which you used for that snippet, in this field. In case of the example I used, the class name is “custom-icon”.

Icon class used

6. Now, Publish the tour and embed it on a page/post. Then Preview the page/post to see that the hotspot icon has been replaced with the icon you selected.

Custom icon class used on a virtual tour

(**Click here to learn how to embed a virtual tour on a page/post)

**These customizations are based on each hotspot. So if you want to customize a second hotspot, you need to select that hotspot and then use these customizations.

That’s it. That’s how you can customize hotspot icons and color.
